Ford 6.7L Dual Remote Bypass System
A highly sought after item for those who want to keep their diesels maintenance free for the longest time. These are true SOOT removal devices which are needed on diesels with DPF to lower wear from fuel relates issues. Most customers buy the Bypass kits because they drive extended miles and these reduce the oil change frequency. As of Feb 6th 2017 we will have one of the only approved Diesel Oils in the CK4 specification that can be used in the Ford 6.7. The bypass kit only enhances the anti-wear qualities of this oil AND allows for even longer extended intervals backed with a guarantee.
These are in stock in the Sioux Falls store. Everything you need is in the box with the exception of optional custom mounting hardware which allows you to mount where you want. Most customers will mount the bypass bracket to the frame directly. Others will mount up front in the engine compartment or in front of the radiator. It is beneficial to mount it were there is easy access. In the Sioux Falls store request 15% off the online price. We can also ship out of state saving you the sales tax.
The Dual Remote Bypass System provides superior filtration performance for 6.7L Ford PowerStroke diesel engines. System includes mount, mounting hardware, hose, hose fittings, spin-on adapter, EaO26 full-flow oil filter and EaBP100 Bypass filter.
Buy in the Sioux Falls AMSOIL store at 4610 W. 12th St. or use this Online link to the Amsoil sale page if you are outside of the area.
The Ea Bypass Oil Filter (EaBP) provides the best possible filtration protection against wear and oil degradation. Working in conjunction with the engine’s fullflow oil filter, the AMSOIL Ea Bypass Filter operates by filtering oil on a “partialflow” basis. It draws approximately 10 percent of the oil pump’s capacity at any one time and traps the extremely small, wearcausing contaminants that fullflow filters can’t remove. The AMSOIL Ea Bypass Filter typically filters all the oil in the system several times an hour, so the engine continuously receives analytically clean oil.
About the Bypass Oil Filter
They draw approximately 10 percent of the oil sump’s capacity at any one time and trap the extremely small, wear-causing contaminants that full-flow filters can’t remove. AMSOIL Ea Bypass Filters typically filter all of the oil in the system several times an hour, so the engine continuously receives analytically clean oil.
AMSOIL Ea Bypass Filters have an absolute efficiency of 98.7 percent at two microns. This highly efficient filter provides exceptional filtration performance, removing all the particles known to reduce engine life.
AMSOIL Ea Bypass Filters have a marine powder-coated exterior and a zinc-dichromate base plate to provide excellent corrosion protection. Ea Bypass Filters feature a nitrile HNBR gasket, an orange silicone anti-drain valve and proprietary high-efficiency media.

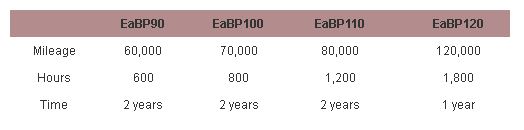

Filter Service Intervals
Ea Bypass Filters offer long service life. Do not exceed the limits listed in the chart below.
Increased Oil Capacity
The increased fluid system capacity and filtration life provides improved oil cooling and ensures that equipment constantly runs on highly filtered oil. Engine efficiency is increased, providing extended engine life.
AMSOIL has designed a high-efficiency bypass filter element that is also a soot removal device. AMSOIL Ea Bypass Filters use proprietary high-efficiency media. This media removes soot particles two microns and larger, eliminating abrasive wear from soot agglomeration.
Bypass Filtration Benefits
- Efficient small-particle and soot removal
- Equipment constantly runs on clean oil
- Increased engine efficiency
- Can significantly extend engine life
- Increased filtration capacity and life
- Improved oil cooling
- Increased fluid system capacity
- Dramatically extended drain intervals
Installation is totally your choice. AMSOIL has recently compiled information from customers and will soon be added to the help pages. We are looking for one area mechanic in Sioux Falls to send our customers to. We are open to suggestions should you know a mechanic to assist in these as some customers are not willing to do this type of work on their own vehicles.
Installing an AMSOIL Bypass Oil Filtration System is a fairly simple process that can be done right in the comfort of your own garage; no professional installation is required. AMSOIL provides bypass systems specifically designed for some of the more popular applications. If you don’t see your specific application, you may still install a bypass system on your vehicle. Depending on the space available in your vehicle, choose either the Universal Single-Remote Bypass System (BMK21) or the Universal Dual-Remote Bypass System (BMK23). Follow the purchasing information on the universal system webpage to ensure you receive the right system and components for your application. Once you have determined the right system, refer to the installation instructions and examples.
Or call 605-274-2580 for more information
